Constant temperature mixer

Model:JXH-100

Brand:Jingxin

Specifications :Set

Introduction:JXH-100 constant temperature mixer is a multi-purpose constant temperature oscillator that combines a brushless DC motor and PID intelligent temperature control technology.

product description:

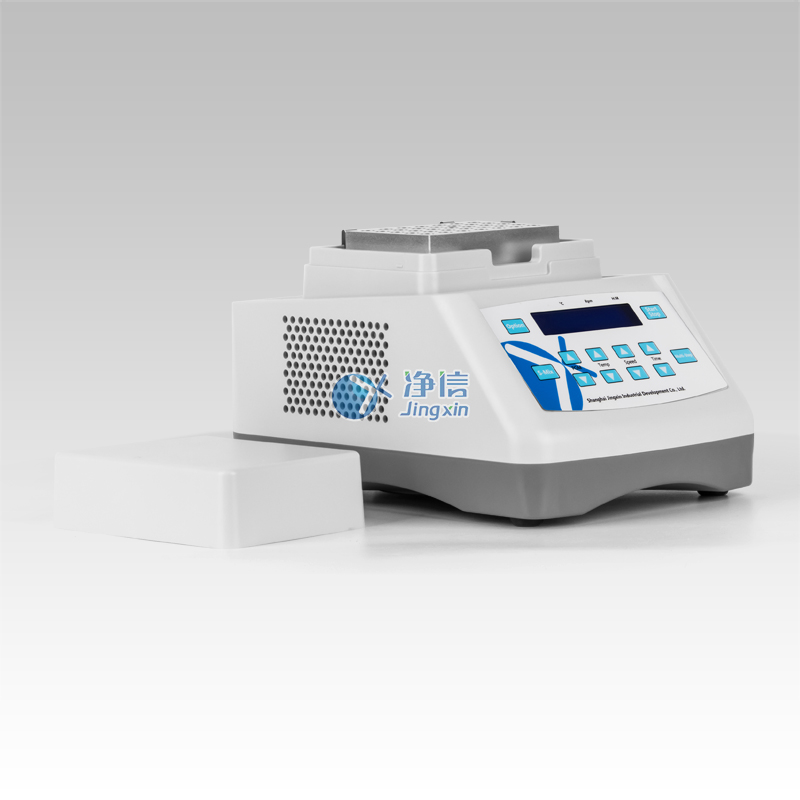

The JXH-100 constant temperature mixing instrument is a multi-purpose constant temperature oscillator that combines a brushless DC motor and PID intelligent temperature control technology. Its PID fuzzy control technology can accurately ensure the temperature control accuracy, and automatically adjust the heating rate to save waiting time.

JXH-100 perfectly combines the two functions of constant temperature and oscillation, which greatly shortens the time of experimental operation. It is an ideal automation tool for the reaction process of sample incubation, catalysis, mixing and storage. With multi-purpose functions such as heating, oscillation, and cooling, it can meet the needs of different users.


Features:

◆Users can independently turn off or turn on the constant temperature, oscillation, and timing functions to achieve multiple functions in one machine and improve equipment utilization;

◆Using metal modules, high temperature uniformity, easy module replacement;

◆The instrument has fast heating speed, uniform heating, precise temperature control and high stability;

◆Microprocessor control ensures superior temperature stability and uniformity;

◆Brushless DC motor, low noise, long life and maintenance-free;

◆LCD display, real-time display of current temperature and speed information;

◆With short oscillation jog function and temperature calibration function;

◆The oscillating speed is accurate and the fluctuation is small;

◆When the program runs, an alarm signal will be sent out;

◆ Optional power-off recovery function and automatic startup function to meet different needs of users;

◆Support module classification custom calibration function;


technical parameter:

Main parameters

Parameter range

Temperature setting range

0℃~100℃

time setting

1min~99h59min/∞

Display accuracy

0.1℃

range of rotation

200~1800Rpm

Heating time

≤12 minutes (25°C to 100°C)*

Multi-point loop operation

Support (can be cycled 99 times)

Automatically run on startup

Support

Sample capacity

See module selection table

Voltage

AC220V/50-60HZ

Dimensions

(mm)260x195x150 mm

Temperature control range

Room temperature +5℃~100℃

Temperature control accuracy

≤±0.3℃*

Temperature uniformity

≤±0.3℃*

Horizontal amplitude

3mm

Multi-point operation

Support (5 points)

Automatic preheating

Support

Automatic recovery after power failure

Support

input power

150W

Fuse

250V  3A  Ф5×20

weight

7.5Kg


Optional modules:

Model

Test tube diameter

Test tube number

MD30

0.2ml (standard plate)

96

MD31

0.5ml (centrifuge tube)

54

MD32

1.5ml (centrifuge tube)

35

MD33

2.0ml (centrifuge tube)

35

MD34

0.5ml+1.5ml (centrifuge tube)

15+20

MD35

0.2ml (enzyme plate)

96

MD36

5ml

24

MD37

10ml

15

MD38

15ml

12

MD39

50ml

6

Custom module

Sample tube specifications provided by the customer

——

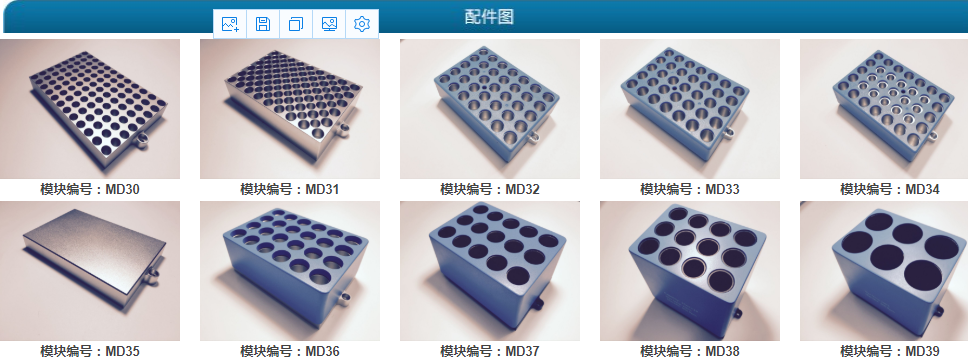

Accessories picture:
